Microelectrode array (MEA) with the industry’s lowest-impedance electrodes

Med Probe

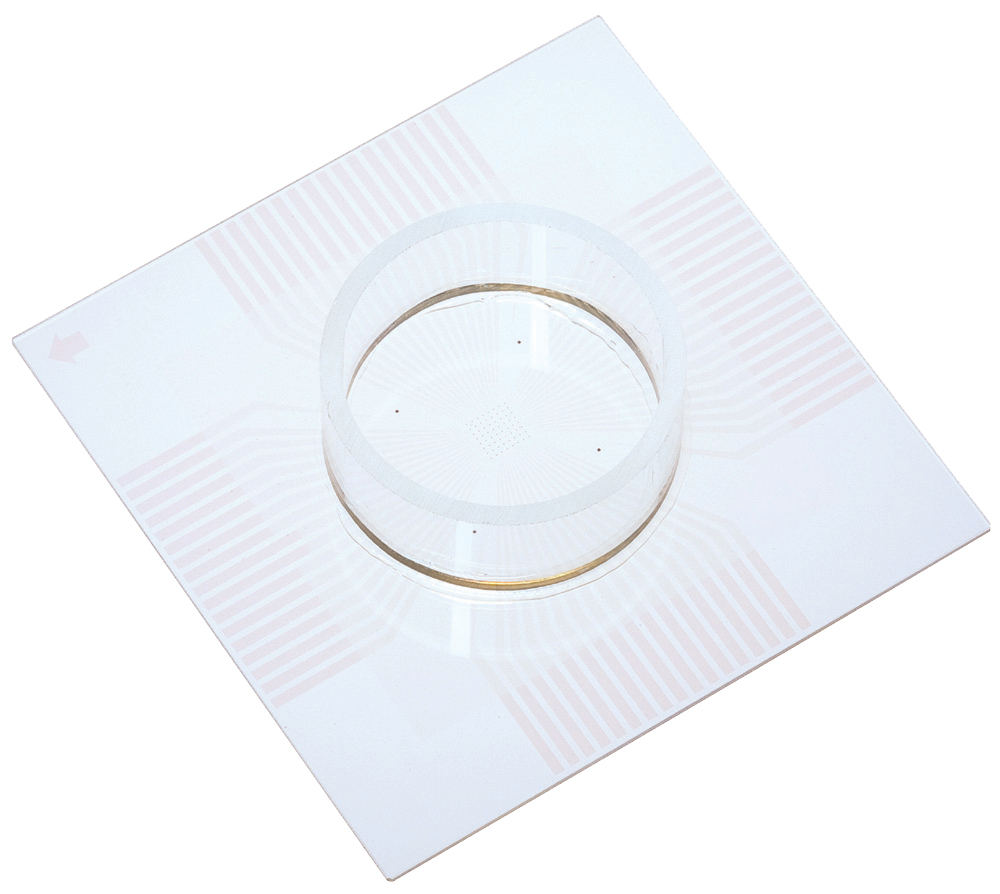

The MED Probe has multiple microelectrodes embedded in the center of a transparent glass plate. The surrounding glass (or plastic) cylinder makes the MED Probe a self-contained recording chamber.

The MED Probe features the industry’s lowest-impedance electrodes (10 kΩ at 1 kHz for 50 μm electrodes). It provides excellent signal-to-noise ratio and capabilities of stimulation.

Specifications
Substrate/Chamber
Substrate Glass, T = 0.7 mm
Conducting layer Indium tin oxide (ITO), 0.15 μm
Insulation layer Acrylic resin (to be replaced with Polyimide when inventry runs out)
Cylindrical chamber Glass (OD:25 / ID:22 mm)
Acrylic resin (for Multi-well Probe)
Substrate size
MED Probes (all types) 50 x 50 mm
MED Probe 16 30 x 40 mm
MED Multi-well Probe 100 x 35 mm
Recording Electrodes
Material Platinum Black
Impedance
50 μm electrodes 10 kΩ (Typ.)
20 μm electrodes 15 kΩ (Typ.)
(1 kHz, 50 mV applied sinusoidal wave)
Maximum Stimulus Output
Current-driven ±200 μA (t=300 μS)
Voltage-driven ±1V
Reference Electrodes
Material Platinum Black
Type Size Number of electrodes / chamber (well) Total impedance (Typ) / chamber (well) (f=1 kHz)
A 100 μm 4 550 Ω
B 200 μm 4 550 Ω
B (1) 200 μm 1 2.2k Ω
B (2) 200 μm 2 1.1k Ω
C φ100 μm 16 550 Ω
D φ100 μm 16 550 Ω
D (2) φ100 μm 8 1.1k Ω
E 200 μm 16 300 Ω
