The MED64 Amplifiers feature broad acquisition bandwidth that allows you to record several different types of signals. Thanks to the MED Probe’s lowest-impedance electrodes, excellent signal-to- noise ratio can be achieved even with the broad acquisition bandwidth.

The main amplifier has built-in analog high/low cut filter, that enables 1 set of MED64 System to be shared for multiple purposes. The same amplifiers are used for all MED64 Systems and upgrades can be made with minimum cost.

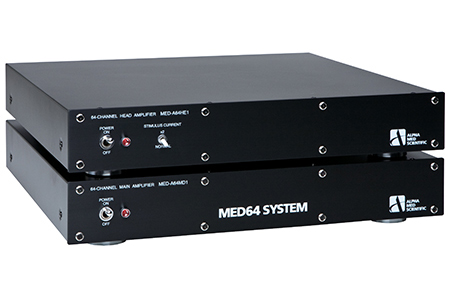

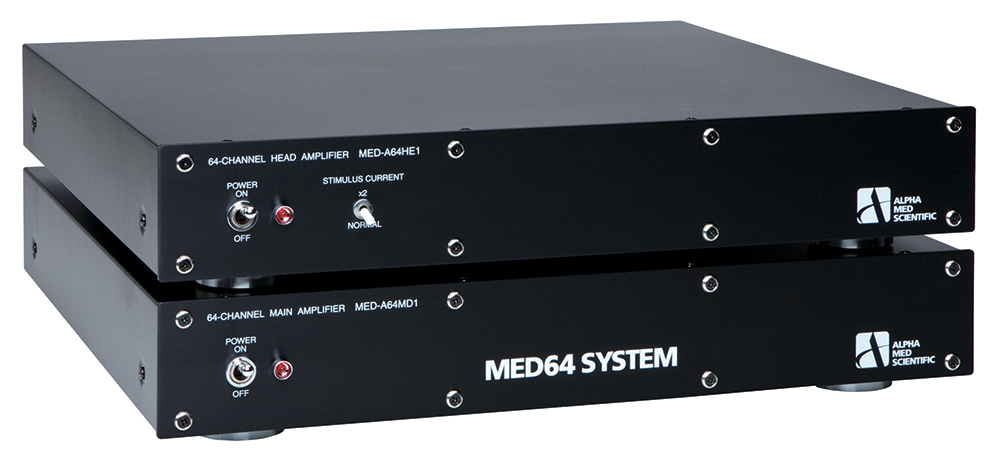

MED64 Main Amplifier (MED-A64MD1A) / MED64 Head Amplifier (MED-A64HE1S)

MED Amplifier

Features

  • Broad acquisition bandwidth of 0.1 Hz -10 kHz.
  • Low-cut filter (High-pass filter) with 0.1, 1, 10, and 100 Hz cutoff.
  • High-cut filter (Low-pass filter) with 1, 2.0, 2.5, 7.5, and 10 kHz cutoff.
  • Built-in 2 channel amplifier.
  • Built-in digitizer.
  • 64ch x 1 and 16ch x 4 input terminals allowing connection to all types of connectors.
  • USB connection to computer.
Specifications
MED64 Main Amplifier (MED-A64MD1A)
Amplifier Digitizer
Number of channels 64 Resolution 16 bit
Gain x 20-217 Sampling rate 20 kHz /channel
Bandwidth 0.1Hz – 10 kHz Output USB
Analog low-cut filter 0.1/ 1 / 10/ 100 Hz
Analog high-cult filter 1 / 2 / 2.5 / 5.0 / 7.5 / 10 kHz General
Input impedance 100 MΩ Power supply AC 100-240V (50-60 Hz)
Weight (without AC adaptor) 5.9Kg
Dimensions (without AC adaptor) W430 x L437 xx H74 (mm)
MED64 Head Amplifier (MED-A64HE1S)
Amplifier Stimulator
Number of channels 64 Number of channels 2
Gain x 10 Output format Current-driven
Bandwidth 0.1Hz – 100 kHz Maximum input voltage +/-4 V
Input impedance 100 MΩ Maximum output current 200 μA
Output impedance 10 kΩ
RMS Noise (Typical) General
*Input short-circuited 14 nV r.m.s. / √Hz Power supply AC 100-240V (50-60 Hz)
*MED-P515A input Weight (without AC adaptor) 6.6Kg
f < 3kHz 0.8 μV r.m.s. Dimensions (without AC adaptor) W430 x L437 xx H74 (mm)
f < 5 kHz 1.2 μV r.m.s.
f < 10 kHz 1.8 μV r.m.s.
