MED64-Allegro

The most sensitive medium throughput MEA system with multiple wells. Ideal for drug testing using stem cell-derived cardiomyocytes/neurons

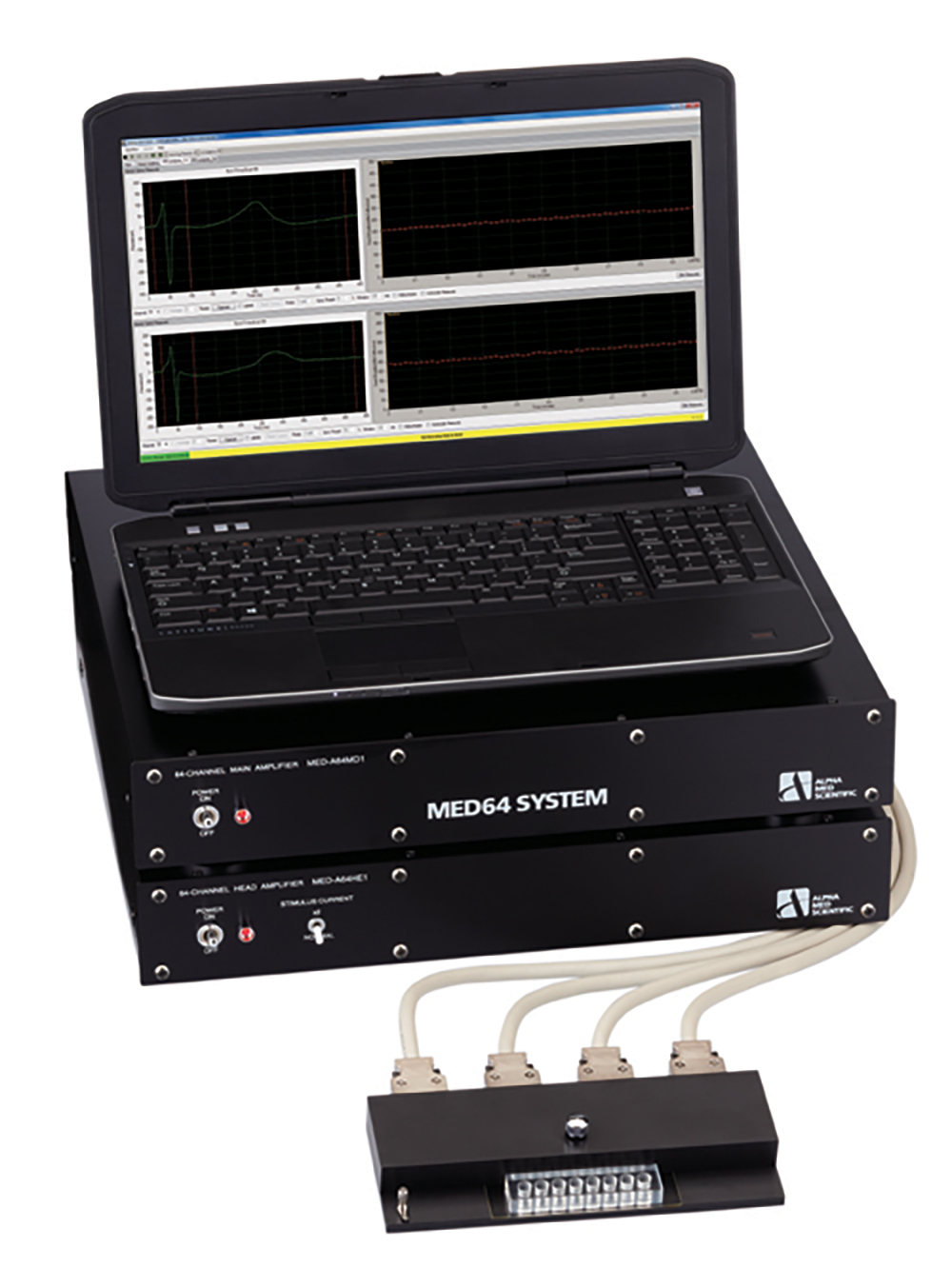

MED64-Allegro System is a medium throughput MEA system for cultured applications. It is an ideal solution for drug testing using stem cell-derived cardiomyocytes or/and neurons. The MED64’s high fidelity will provide more accurate and reliable data allowing advanced screening as well as analysis during the testing.

MED64-Allegro
System Configuration
(1) MED Multi-well Probe MED_Probe_Multi-well_th
(1) MED Multi-well Connector
(MED-C11)
Connector_c11_th
(1) MED64 Head Amplifier
(MED-A64HE1S)
Amplifier_Head_th
(1) MED64 Main Amplifier
(MED-A64MD1A)
Amplifier_Main_th
(1) Mobius Software Mobius_icon
(1) Data acquisition PC  Spacer_th

Features

  • Acquire extracellular signals from 4 or 8 samples.
    (16 electrodes per sample for 4 well / 8 electrodes for 8 well)
  • Stimulation through 1 or 2 electrodes per sample sequentially.
  • Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level.
  • Large current-driven stimulation via any electrode.
  • Recording inside of a humidified incubator.
  • One system can be used for multiple experiments with its amplifier’s broad acquisition bandwidth and analog lowpass/highpass filter.
  • Analyze data online during your experiment or offline after.
  • Suitable for cell cultures.
  • Low-cost shift to MED64-Quad II/Basic System.
Specifications
Number of channels / sample
16 (or 8)
RMS Noise (Typical)
*Short-circuited:
14 nV/ √Hz

*MED-515A input:
0.8 μV (f < 3 kHz)
1.2 μV (f < 5 kHz)
1.8 μV (f< 10 kHz)
Number of samples
4 (or 8)
Gain
X 200-2170
Acquisition bandwidth
0.1Hz – 10 kHz
Analog low-cult filter
0.1, 1, 10, 100 Hz
No. of stimulator channel
2
Analog high-cut filter
1.0, 2.0, 2.5, 5.0, 7.5, 10 kHz
Stimulus output format
Current-driven
Input impedance
100 MΩ
Max. output current
+/- 200 μA
Output impedance
NA
Signal output
Resolution
16 bit
Output format
USB
Sampling rate
Up to 20 kHz / channel
