Med Probe

The standard MED Probe has 64 microelectrodes and is available with 2 types of (5 mm or 10 mm height) chamber height.

Special arrangement (Hippocampal array, Hexagonal) and probe for multi- sample processing are also available.

Med Probe Electrode Zoom

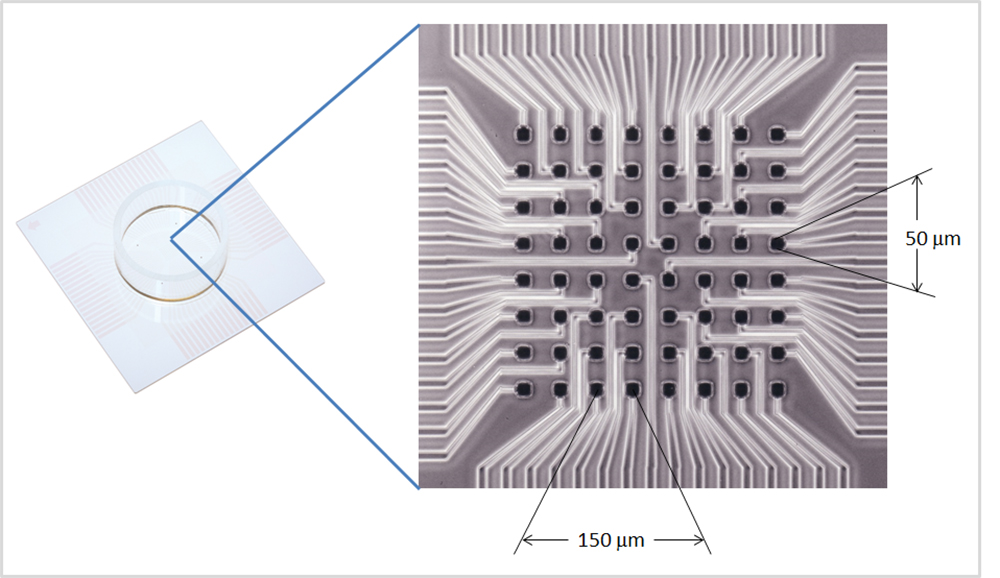

MED Probe (left) and zoom-up view of the microelectrodes in the MED-P515A

Standard 8×8 Arrays

Product Number Array Size Recording Electrodes Reference Electrodes Chamber Depth
Size Spacing Type Spacing (d)
MED-P2105 0.7 x 0.7 mm 20×20 μm 100 μm A 8.5 mm 5 mm
MED-P210A 0.7 x 0.7 mm 20×20 μm 100 μm A 8.5 mm 10 mm
MED-P5155 1×1 mm 50×50 μm 150 μm B 8.5 mm 5 mm
MED-P515A 1×1 mm 50×50 μm 150 μm B 8.5 mm 10 mm
MED-P5305 2×2 mm 50×50 μm 300 μm B 9.2 mm 5 mm
MED-P530A 2×2 mm 50×50 μm 300 μm B 9.2 mm 10 mm
MED-P5455 3×3 mm 50×50 μm 450 μm B 10.2 mm 5 mm
MED-P545A 3×3 mm 50×50 μm 450 μm B 10.2 mm 10 mm

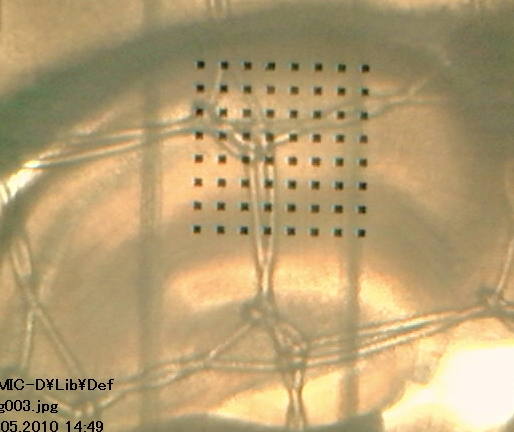

MED-P210A/5 (0.7 mm)

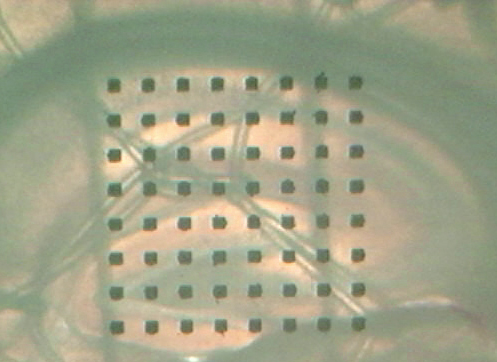

Mouse Hippocampus
Mouse Hippocampus CA1

MED-P515A/5 (1 mm)

Mouse Hippocampus
Mouse Hippocampus

MED-P515A/5 (1 mm)

Mouse Hippocampus CA1

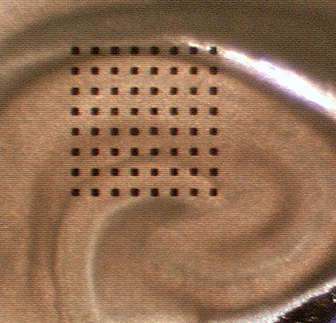

Rat Hippocampus CA1

MED-P530A/5 (2 mm)

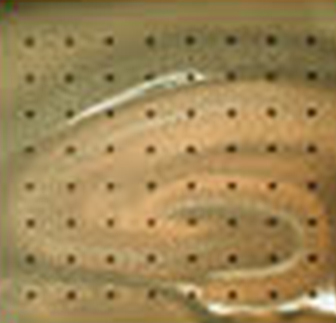

Rat Hippocampus
Rat Hippocampus

MED-P545A/5 (3 mm)

Rat Hippocampus

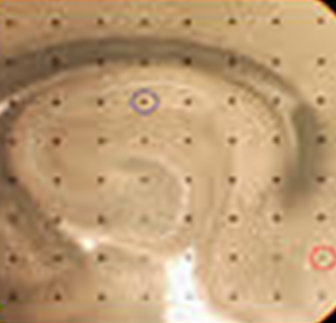

Rat Hippocampus and Peripheral Area

32 x 2, 16 x4 Arrays

Med Probe
MED-P50035

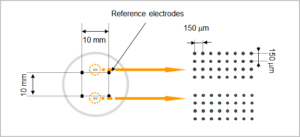

Electrode arrangement for 32×2 array (MED-P50035/A)
MED-P5004A

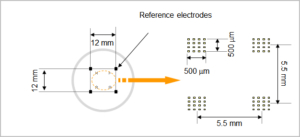

Electrode arrangement for 16×4 array (MED-P50045/A)
Product Number Arrangement
Recording Electrodes
Reference Electrodes
Distance for Electrodes Block Chamber Depth
Size Spacing Type Spacing (d)
MED-P50035
32(4×8) x 2
φ50 μm
150 μm
D
10 mm
11.75 mm
5 mm
MED-P5003A
32(4×8) x 2
φ50 μm
150 μm
D
10 mm
11.75 mm
10 mm
MED-P50045
16(4×4)x4
50×50 μm
150 μm
B
12 mm
5.5 mm
5 mm
MED-P5004A
16(4×4)x4
50×50 μm
150 μm
B
12 mm
5.5 mm
10 mm

Multi-sampling (2 or 4) Probe

Med Probe
MED-PD15A

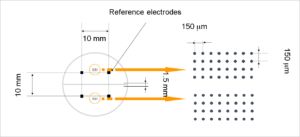

Electrode arrangement for MED-P5D15A/B
MED-P5FF15

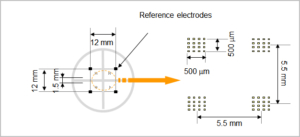

Electrode arrangement for MED-P5FF15
Product Number N. of Electrode/well
Recording Electrodes
Ref. Electrodes
Partition Height Chamber Depth
Size Spacing Type
MED-P5D15A
32(4×8)
φ50 μm
150 μm
D (2)
10 mm
10 mm
MED-P5D15B
32(4×8)
φ50 μm
150 μm
D (2)
5 mm
10 mm
MED-P5DF15
32((4×4) x 2)
50×50 μm
150 μm
B (2)
10 mm
10 mm
MED-P5FF15
16(4×4)x4
50×50 μm
150 μm
B (2)
10 mm
10 mm

Hippocampal Pattern Arrays (CA1, CA3, DG)

MED-P50015/A

MED-P50015/A

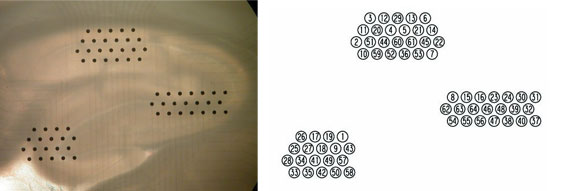

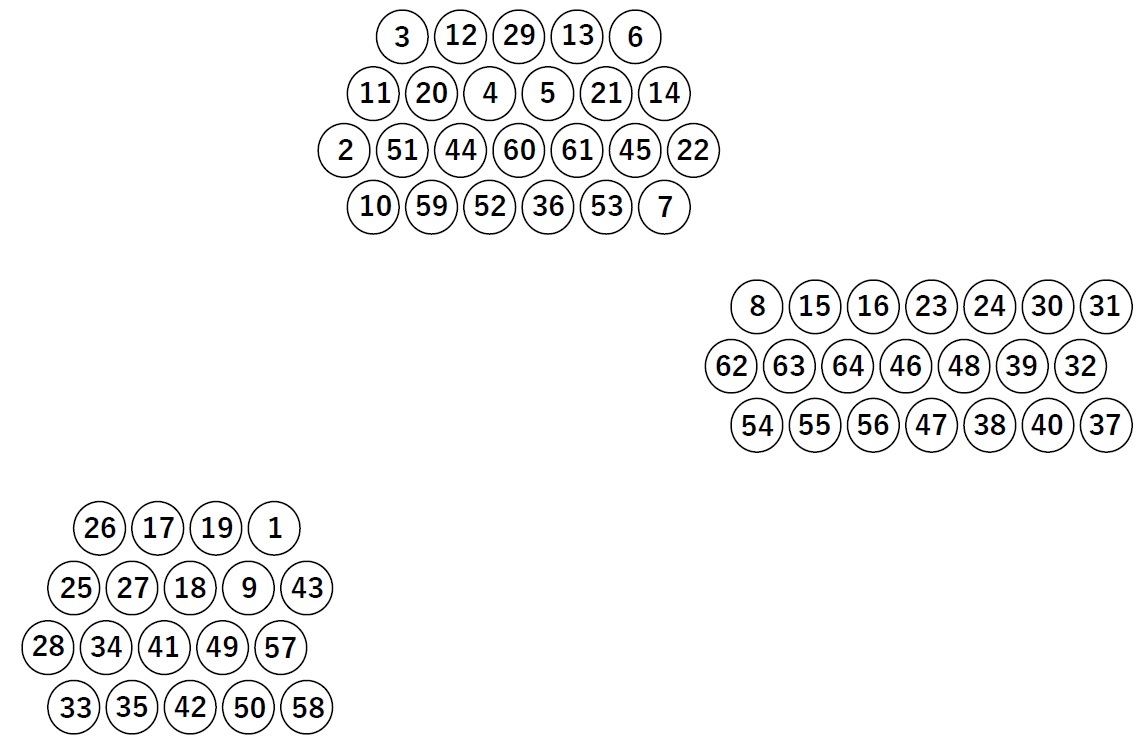

Micrograph of rat hippocampal slice and arrangement of microelectrodes

MED-P50025/A

MED-P50025/A

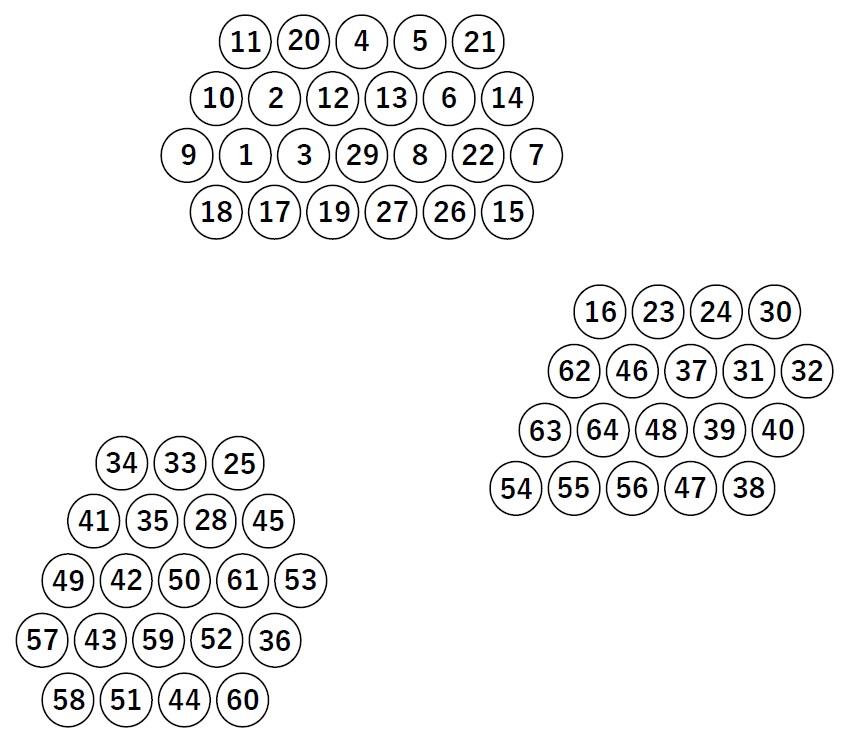

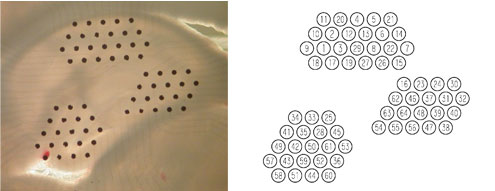

Micrograph of mouse hippocampal slice and arrangement of microelectrodes
Product Number Arrangement Recording Electrodes Reference Electrodes Chamber Depth
Size Spacing Type Spacing (d)
MED-P50015 Rat Hippocampus φ50 μm 150 μm C 10 mm 5 mm
MED-P5001A Rat Hippocampus φ50 μm 150 μm C 10 mm 10 mm
MED-P50025 Mouse Hippocampus φ50 μm 150 μm C 10 mm 5 mm
MED-P5002A Mouse Hippocampus φ50 μm 150 μm C 10 mm 10 mm

Hexagonal Arrays (61 electrodes)

MED-P2H075/A

MED-P2H07A

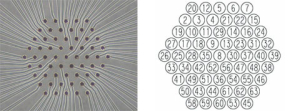

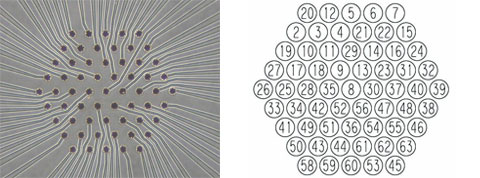

Micrograph of electrodes and arrangement of microelectrodes.
Product Number Arrangement Recording Electrodes Reference Electrodes Chamber Depth
Size Spacing Type Spacing (d)
MED-P2H075 Hexagonal φ20 μm 70 μm C 10 mm 5 mm
MED-P2H07A Hexagonal φ20 μm 70 μm C 10 mm 10 mm
