MED Connector

The MED Connector holds and connects the MED Probe (MEA) to the amplifiers. Thanks to the MED Probe’s lowest-impedance electrodes the MED Connector holding the MED Probe is connected to the amplifier with 2m-long cable, that does not generate signal attenuation. This unique MED64 system configuration will provide the great flexibilities for your experiments.

For Basic / Plex System
For Quad II System
For Allegro System

For Basic / Plex System

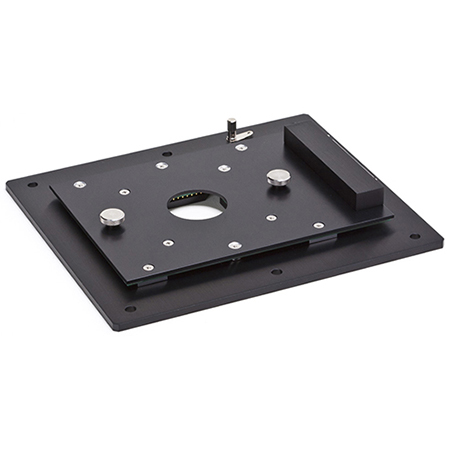

MED Connector
(MED-C03)

MED Connector

Features

  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
  • Provides clear optical path through MED Probe for microscopy.
  • Provides a mechanically-stable platform for the MED Probe.

MED ThermoConnector
(MED- CP04)

MED ThermoConnector

Features

  • Heater and thermocouple sensors are incorporated into the bottom unit of the MED Connector.
  • Bath temperature in the MED Probe is maintained using a dedicated temperature controller.
  • Can be used with or without perfusion. Included tubing through connector provides in-line solution heating.
  • Aperture in the unit bottom allows observing biological samples with microscope.

Specifications

MED Connector (MED-C03)
MED Probe securing mechanism Screw down
Material Aluminum, Gold plate for contact pins
Contact resistance < 30 mΩ
Printed wiring 4 layer
– 1st, 4th : ground,
– 2nd, 3rd : signal line
Weight 480 g
Dimensions W174 x L150 x H21 (mm)
MED ThemoConnector (MED-CP04)
Connector Unit
MED Probe securing mechanism Screw down
Material Aluminum, Gold plate for contact pins
Contact resistance < 30 mΩ
Printed circuit board 4 layers
– 1st, 4th : ground,
– 2nd, 3rd : signal line
Heating device Transistors (2)
Temperature accuracy <+/- 1°C (for solution in the MED Probe)
Range of verified <1°C accuracy 32°C – 37°C (RT=25°C)
Weight 510 g
Dimensions W200 x D20 x D105 (mm)
Temperature Controller
Temperature control unit OMRON E5GC
Controlling method Auto-tuning PID temperature control
Resolution 0.1°C
Power supply voltage DC ±12V
Consumption current +1A, -0.1A (typ.) / +2A (max.)
Weight 350 g
Dimensions W150 x D110 x H50 (mm)
Power supply unit, Input AC 100-240 V (50-60 Hz)
Power supply unit, Output DC ±12V

For Quad II System

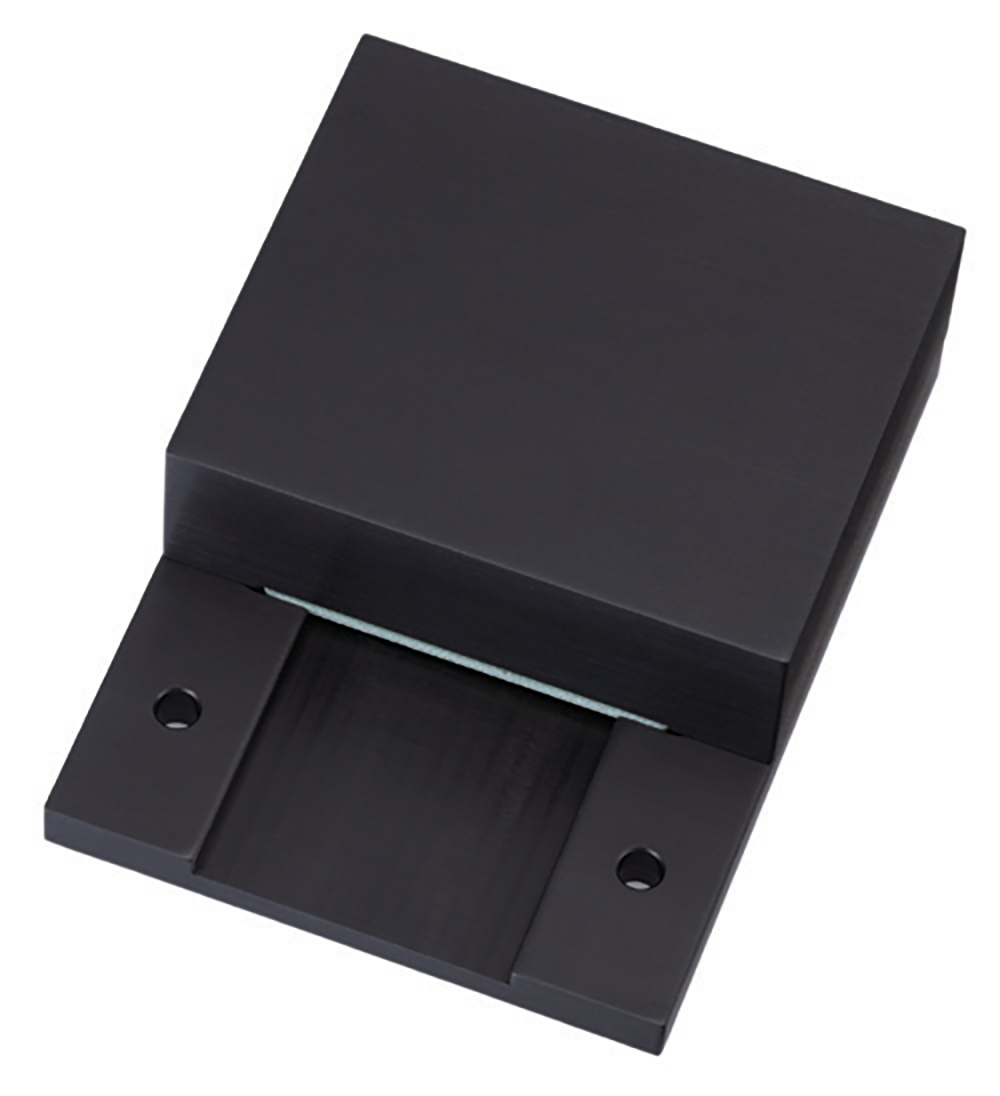

MED Mini Connector
(MED-C04)

MED Mini Connector

Features

  •  Connector for the MED64-Quad II System.
  • Used for communication between the MED Probe 16 and the MED64 Head Amplifier.
  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
  • Compact design, easy-to-load the MED Probe.
  • Compatible with the 4×4 or 2×8 Probes (needs to be pre-configured).

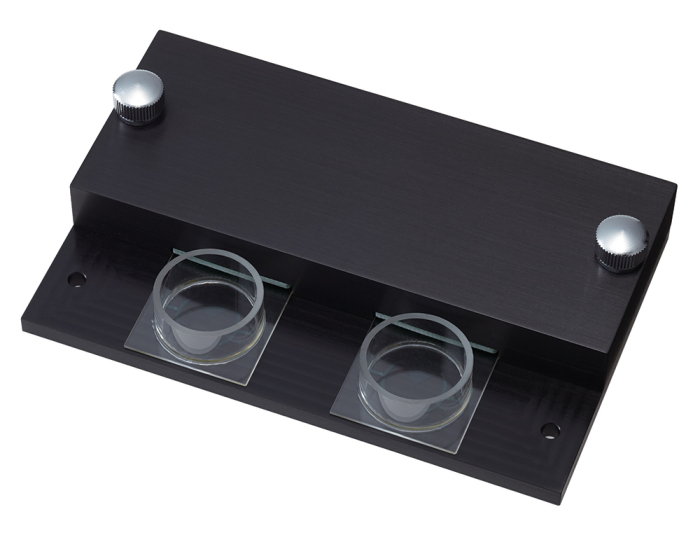

MED Duet Connector
(MED-C05)

MED-C05

Features

  • Connector for the MED64- Quad II System.
  • Used for communication between the MED Probe 16 and the MED64 Head Amplifier.
  • 2 sets of MED Probe 16 is installed into.
  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g., cell culture incubator).
  • Compact design. Easy-to-load MED Probe.
  • Compatible with all types of MED Probe 16.

Specifications

MED Mini Connector (MED-C04)
Number of Probe to be loaded 1
MED Probe securing mechanism Slide in
Material Aluminum, Gold plate for contact pins
Weight 190 g
Dimensions W60x x L83 x H24 (mm)
MED Duet Connector (MED-C05)
Number of Probe to be loaded 2
MED Probe securing mechanism Slide in
Material Aluminum, Gold plate for contact pins
Weight 385 g
Dimensions (mm) W130 x L80 x H30 (MED-C05)

For Allegro System

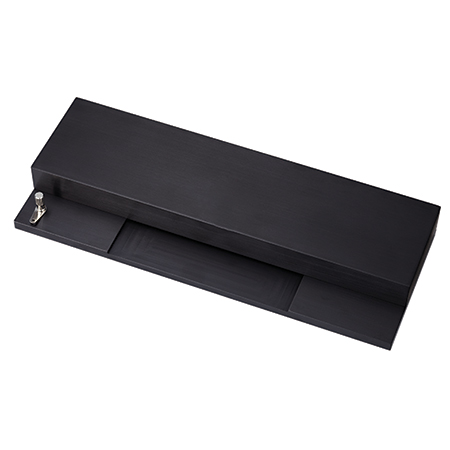

MED Multi-well Connector
(MED-C11)

MED-C11

Features

  • Connector for the MED64-Allegro System.
  • Used for communication between the MED Multi-well Probe and the MED64 Head Amplifier.
  • No active onboard electrical circuitry; Connectors can safely be placed in a humidified environment (e.g. cell culture incubator).
  • Compact design.
  • Easy–to-load the MED Probe.

Specifications

MED Multi-well Connector (MED-C11)
MED Probe securing mechanism Slide in
Material Aluminum, Gold plate for contact pins
Weight 700 g
Dimensions W210 x L83 x H34 (mm)
